Exercise no 4 - Delivery

You have in exercise 1, 2 and 3 worked with the groundwater reservoir outlined in fig. 1.

K_d

K_c

K_b

K_a

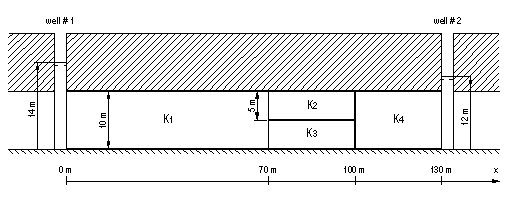

Figure 1: Vertical section of groundwater reservoir.

In exercise 1 you calculated the flow through the system and the head distribution from well no.1 to well no. 2. using Darcy flow considerations. In exercise 2 you formulated a finite difference approximation of the flow domain and finally you have used GMS to describe the system in exercise 3.

In this exercise you should gather the results for exercise 1,2 and 3. Compare the estimated groundwater flow and the head distribution obtained from the different methods and discuss the differences in the results.

Delivery: Individual report delivered 15th October 2010 to Jacob Birk Jensen in a printed version.
